Product 01 · PowerSpine Series

PowerSpine
800

A passive, touch-safe, serialized 800 VDC laminated copper power-interconnect module for AI data-centre power shelves and next-generation rack-side power.

Fig. 01 · PS-800 · 4-layer reference build

800

VDC nominal

1.5

kA continuous

1.2

MW peak transfer

conductor layers

Construction

A stack, not a slab.

Two to four precision-formed copper conductors, separated by customer-qualified dielectric films, laminated under vacuum, heat, and pressure into a single serialized assembly.

2–4

Cu layers

1–3 mm

per conductor

≤ 5 pC

PD @ 1.2× Un

+150 °C

class

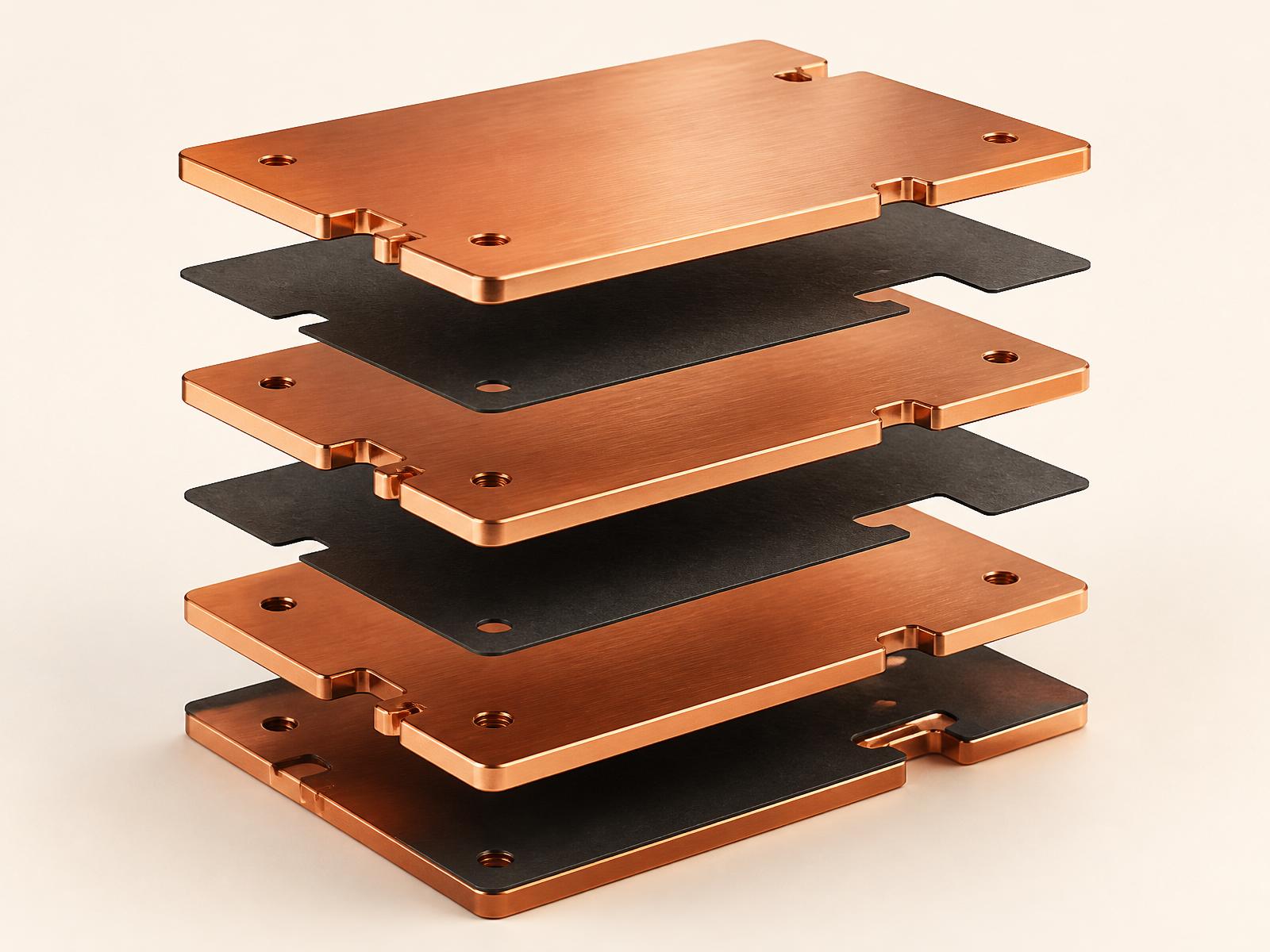

Exploded view of the PowerSpine 800 laminate stack

Fig. 02 · Exploded laminate

Reference-design targets

Specification.

Final current density, conductor thickness, creepage, clearance, dielectric material, and test voltage are frozen with the first OEM customer during the qualification programme.

Nominal system voltage: 800 VDC
Product-family envelope: up to 1,500 VDC
Continuous current: 1,000 – 1,500 A
Power-transfer range: ≈ 800 kW – 1.2 MW
Construction: 2 – 4 shaped copper-conductor layers
Typical copper thickness: 1 – 3 mm per layer
Maximum envelope: up to 600 × 400 mm (first platform)
Insulation: Customer-qualified dielectric and adhesive system
Terminals: Formed, plated, customer-specific
Options: Touch-safe barriers, fuse interfaces, sensor provisions
Traceability: Serial number + digital inspection record
Production testing: Rdc · IR · Hipot · PD · dimensional
Qualification testing: Thermal rise · cycling · vibration · environmental

Top-down view of a finished PowerSpine 800 module on drafting paper

Fig. 03 · First-article record

What the customer receives

Not eight kilograms of copper.

01Electrically and thermally simulated power circuit
02Finished laminated assembly
03Customer-specific terminals and mounting points
04First-article inspection package
05Material and plating traceability
06Electrical test results (Rdc, IR, hipot, partial discharge)
07Repeatable production configuration
08Engineering-change and lifecycle record

Cross-section of the laminated copper edge — alternating conductor and dielectric layers

Fig. 04 · Edge cross-section

Standards & testing

Measured, not asserted.

Partial-discharge measurement is critical to reliability in high-voltage laminated structures. We test to IEC 60270:2025, which defines charge-based measurement methods for partial discharge under AC and DC.

Every unit ships with resistance, insulation-resistance, dielectric-withstand, partial-discharge, and dimensional records — traceable to material lot and plating batch.

Next step

Ready to co-develop a power-shelf platform?
